KOOI Tank Series Dual-Impeller Variable-Frequency Axial-Flow Water Pump

Overview

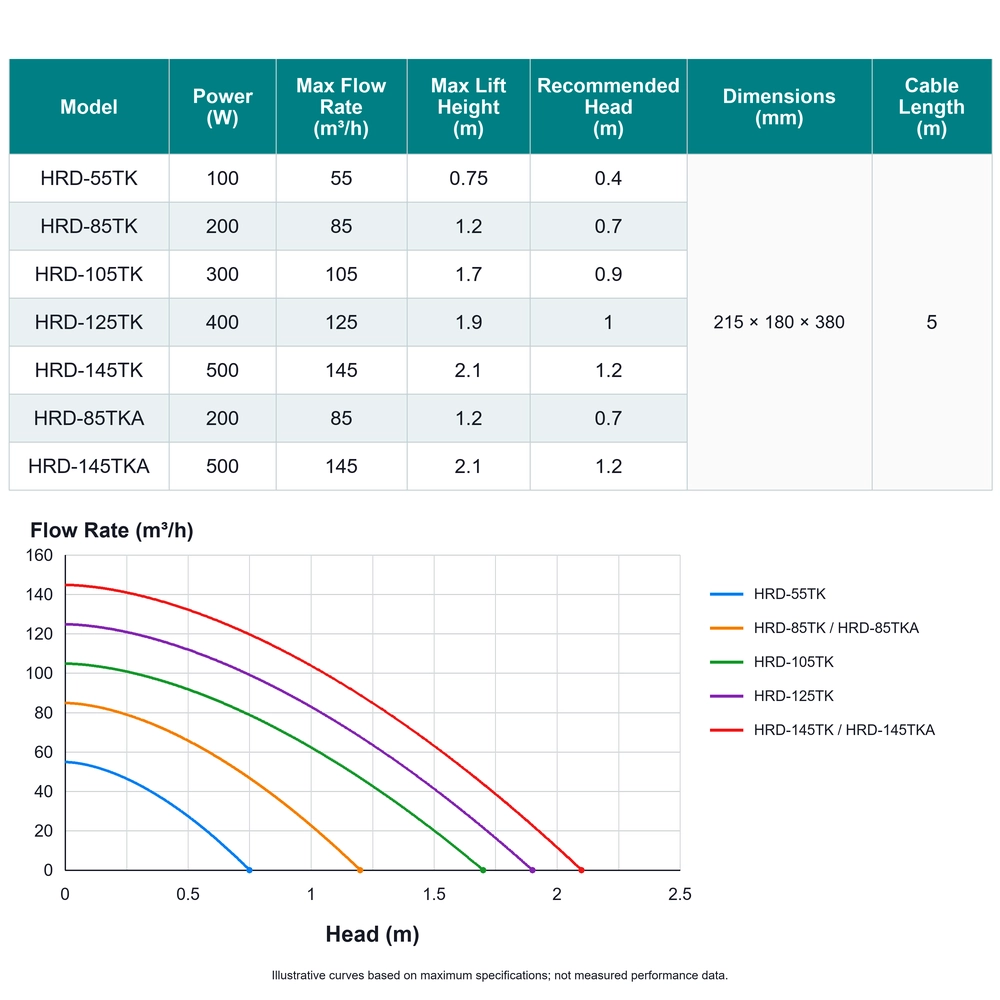

• KOOI Tank Series pumps combine a dual-impeller configuration with a submersible axial-flow design for high-volume, low-head water circulation. The range includes seven models, with power ratings from 100 to 500 W, model-specific maximum flow rates from 55 to 145 m³/h and maximum heads from 0.75 to 2.1 m. Maximum flow and maximum head describe separate operating limits.
• The series supports freshwater and seawater systems and features a 110 mm pipe connection. Applications include koi ponds, aquaculture facilities, river-style circulation channels and circulation systems used for zooplankton harvesting. The specified dimensions are 215 × 180 × 380 mm, with a 5 m cable.

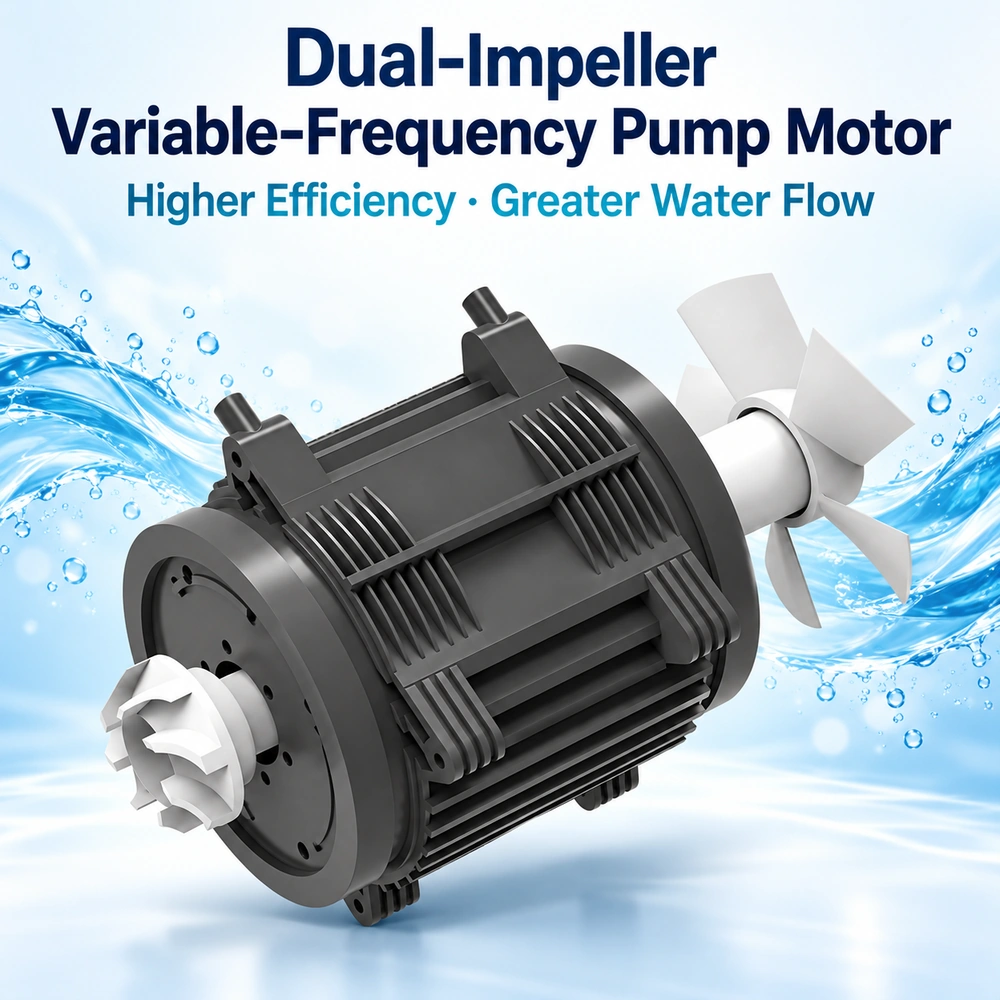

• Variable-frequency operation is paired with protection against lightning surges, electrical interference, dry running and locked-rotor conditions. The low-head design suits circulation systems with small elevation differences.
