Water Pumps
Representative ProductKOOI Small Mouth Series Variable-Frequency Water Pump
A Small Mouth Series Variable-Frequency Water Pump for freshwater and seawater applications, available in fixed-power and adjustable-power models with a ceramic shaft, resin-sealed body, and overheat protection.
- MOQ
- 8 unit
- Available Models
- HRD-75, HRD-100, HRD-120, HRD-75A, HRD-100A, HRD-120A
Overview
- The Small Mouth Series Variable-Frequency Water Pump is designed for demanding circulation applications such as garden koi ponds, large aquariums, seafood tanks, hydroponic systems, and garden sprinklers. Six models are available, with maximum flow rates from 5.5 to 7 m³/h and maximum lift heights from 9 to 13 m.
- The range includes fixed-power HRD-75, HRD-100, and HRD-120 models, as well as adjustable-power HRD-75A, HRD-100A, and HRD-120A models. Adjustable models combine variable-speed operation with an external controller, allowing the output to be matched to different circulation requirements. The variable-frequency motor provides stable power output while supporting low-noise and energy-efficient operation.

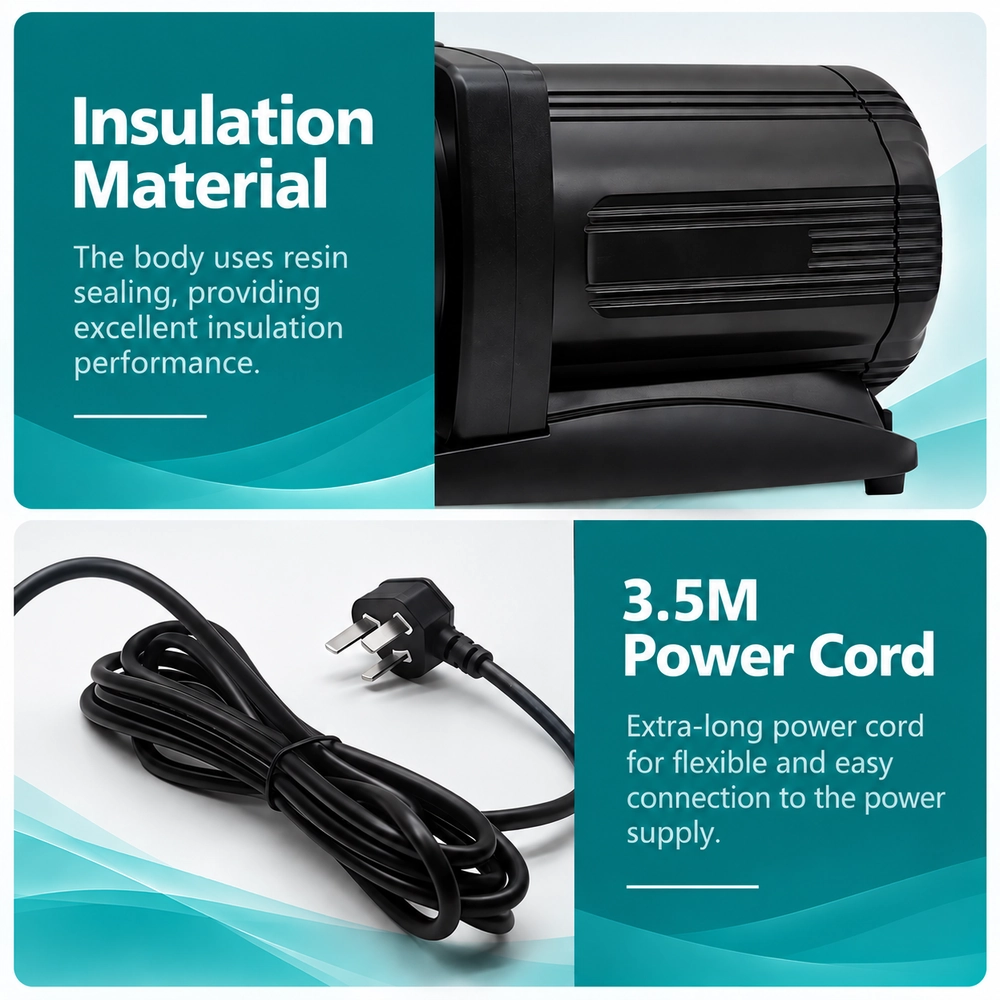

- A pure copper motor and corrosion-resistant ceramic shaft support efficient, durable performance in freshwater and seawater environments. The resin-sealed body provides electrical insulation, while integrated overheat protection helps protect the pump during operation. A 3.5 m power cord provides additional installation flexibility.
Specifications
Electrical
Common Specifications
- Voltage
- 110V / 220V
Model Comparison
| Specification | HRD-75 | HRD-100 | HRD-120 | HRD-75A | HRD-100A | HRD-120A |
|---|---|---|---|---|---|---|
| Power Consumption (W) | 75 | 100 | 120 | 75 | 100 | 120 |
Performance
Common Specifications
- Variable-Frequency Drive (VFD)
- Yes

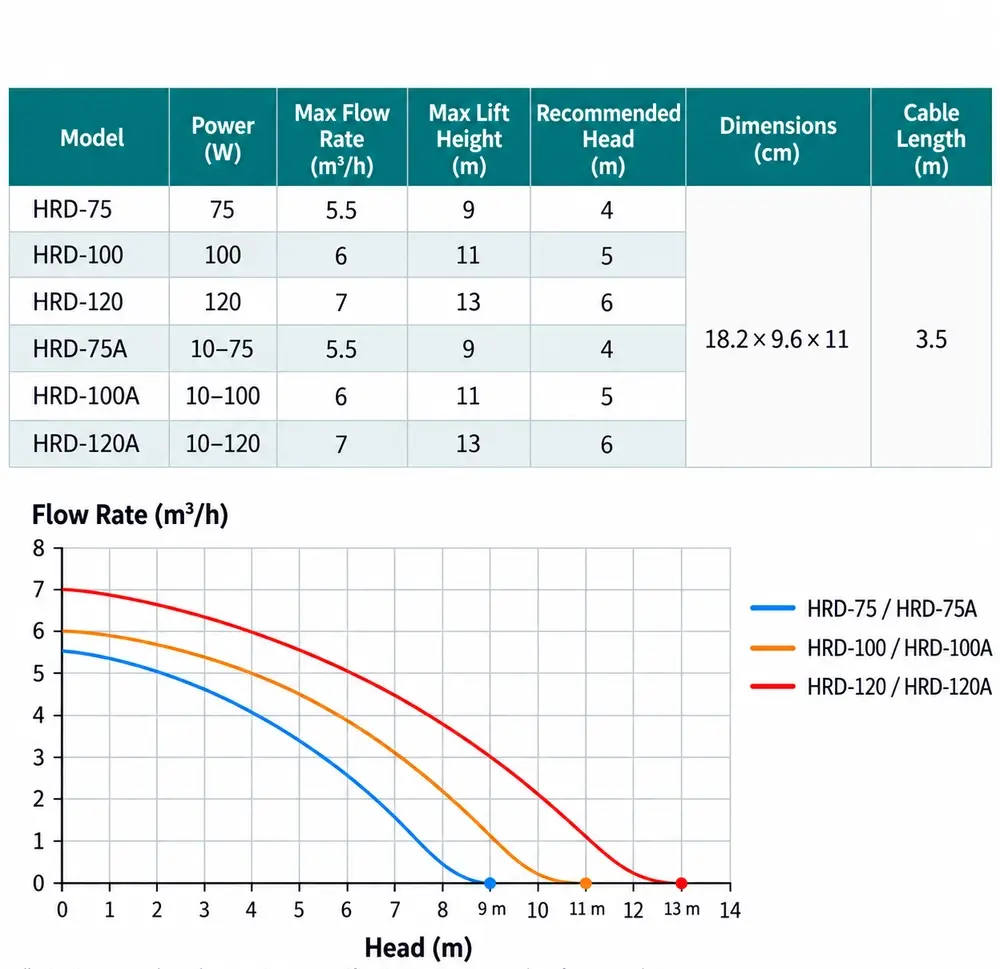

Model Comparison
| Specification | HRD-75 | HRD-100 | HRD-120 | HRD-75A | HRD-100A | HRD-120A |
|---|---|---|---|---|---|---|
| Max Flow Rate | 5.5 | 6 | 7 | 5.5 | 6 | 7 |
| Max Lift Height (m) | 9 | 11 | 13 | 9 | 11 | 13 |
| Recommended Head (M) | 4 | 5 | 6 | 4 | 5 | 6 |
| Flow Rate Control | — | — | — | 10 levels | 10 levels | 10 levels |
| Controller Functions | — | — | — | On/Off / Flow Rate Adjustment / Feed / Wave Maker | On/Off / Flow Rate Adjustment / Feed / Wave Maker | On/Off / Flow Rate Adjustment / Wave Maker / Feed |
Physical
Common Specifications
- Shaft Material
- Ceramic
- Outlet Connection Type and Size
- φ32 With Male Threaded Connection
- Dimensions
- 18.2* 9.6*11 mm
- Plug Type
- EU / CN / US / UK
Model Comparison
| Specification | HRD-75 | HRD-100 | HRD-120 | HRD-75A | HRD-100A | HRD-120A |
|---|---|---|---|---|---|---|
| Cable Length (m) | 3.5 | 3.5 | 3.5 | 2.7+1.9 | 2.7+1.9 | 2.7+1.9 |
General
Common Specifications
- Warranty Period
- 18 months
- Packaging Unit
- 8 PCS
- Carton Dimensions
- 48*35*30 cm
Model Comparison
| Specification | HRD-75 | HRD-100 | HRD-120 | HRD-75A | HRD-100A | HRD-120A |
|---|---|---|---|---|---|---|
| Gross Weight (Kg) | 2.3 | 2.3 | 2.3 | 2.6 | 2.6 | 2.6 |
| Gross Weight per Carton (kg) | 19 | 19 | 19 | 21.5 | 21.5 | 21.5 |
Applications
Home AquariumKoi & Ornamental Ponds
