Water Pumps
Representative ProductKOOI Small Honey Badger Series Variable-Frequency Water Pump
high-flow, high-head variable-speed water pump for freshwater and saltwater systems, offering reliable performance and a long service life, with a ceramic shaft and multiple protection features.
- MOQ
- 8 unit
- Available Models
- HRD-7000, HRD-8000, HRD-9000, HRD-7000A, HRD-8000A, HRD-9000A
Overview
- The KOOI Small Honey Badger Series is designed for water circulation in garden koi ponds, large aquariums, seafood tanks, hydroponic systems, and garden sprinkler applications. The range includes fixed-power HRD-7000, HRD-8000, and HRD-9000 models, together with adjustable-power HRD-7000A, HRD-8000A, and HRD-9000A models. Depending on the model, maximum flow ranges from 7 to 9 m³/h and maximum lift height ranges from 7.5 to 9 m.

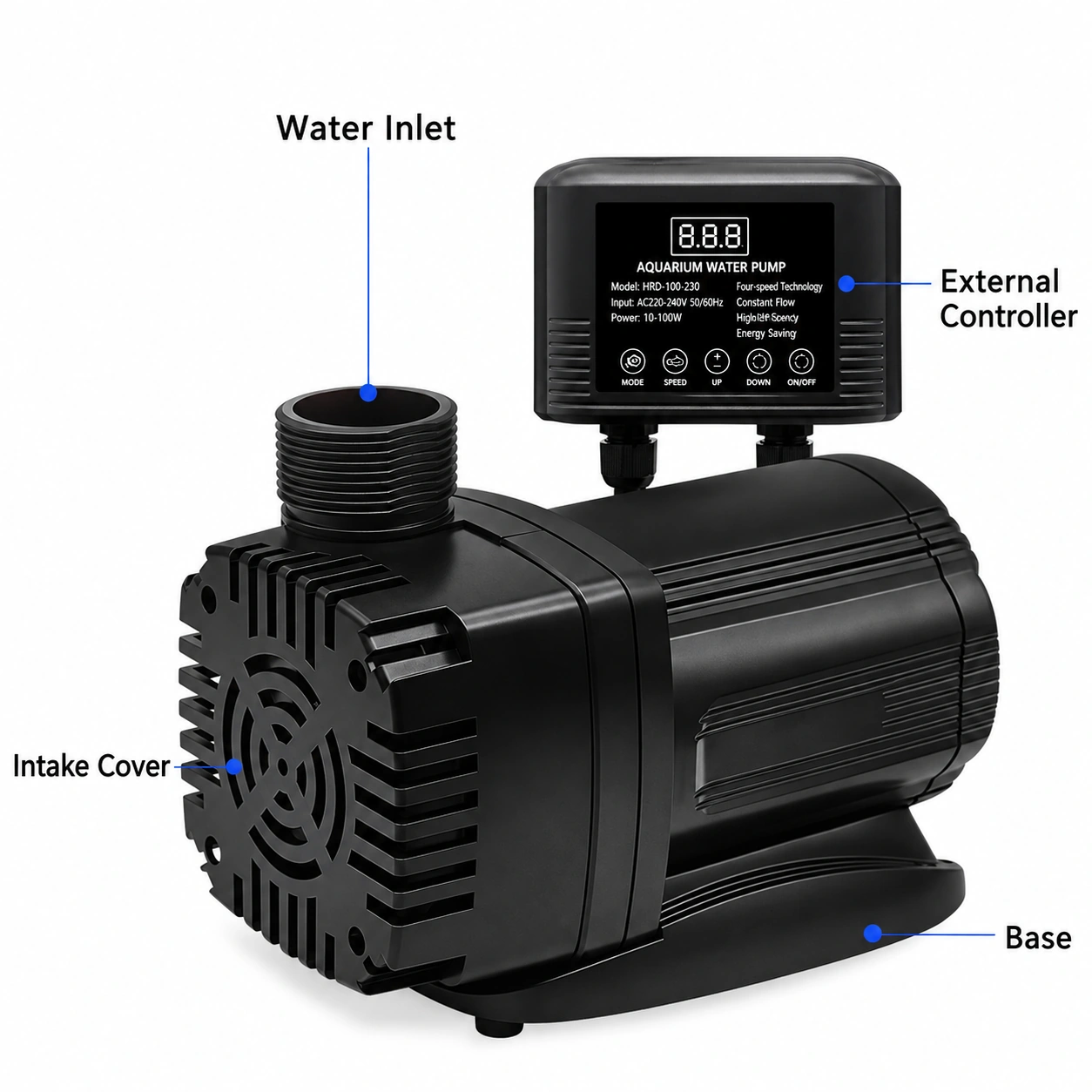

- The variable-frequency motor is designed to provide stable power output with low noise and reduced energy consumption. An external controller on adjustable models enables convenient operating control. A corrosion-resistant ceramic shaft supports use in both freshwater and seawater environments while contributing to efficient, durable operation.
- Integrated protection functions include lightning-surge protection, anti-interference protection, dry-run protection, and locked-rotor protection. Together, these features help protect the pump during demanding circulation applications.
Specifications
Electrical
Common Specifications
- Voltage
- 110V / 220V
Model Comparison
| Specification | HRD-7000 | HRD-8000 | HRD-9000 | HRD-7000A | HRD-8000A | HRD-9000A |
|---|---|---|---|---|---|---|
| Power Consumption (W) | 75 | 100 | 120 | 75 | 100 | 120 |
Performance
Common Specifications
- Variable-Frequency Drive (VFD)
- Yes

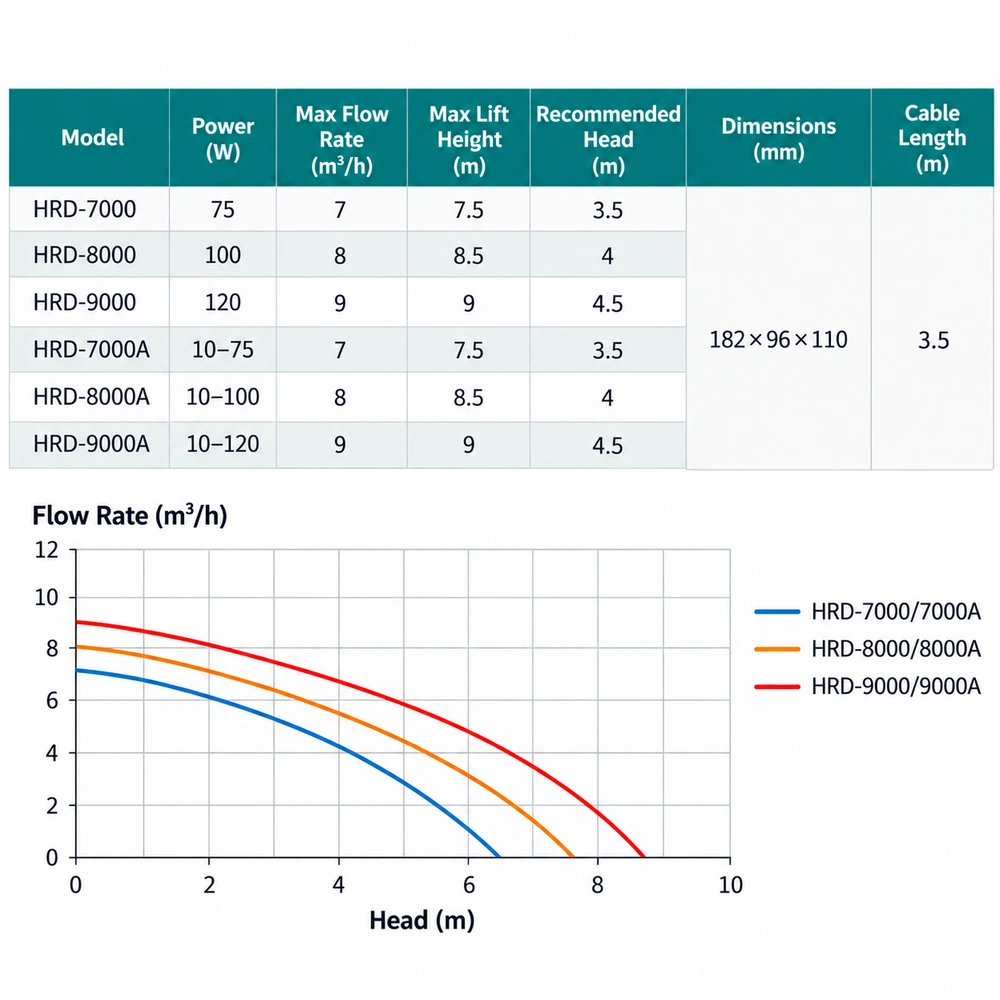

Model Comparison
| Specification | HRD-7000 | HRD-8000 | HRD-9000 | HRD-7000A | HRD-8000A | HRD-9000A |
|---|---|---|---|---|---|---|
| Max Flow Rate | 7 | 8 | 9 | 7 | 8 | 9 |
| Max Lift Height (m) | 7.5 | 8.5 | 9 | 7.5 | 8.5 | 9 |
| Recommended Head (M) | 3.5 | 4 | 4.5 | 3.5 | 4 | 4.5 |
| Flow Rate Control | — | — | — | 10 levels | 10 levels | 10 levels |
| Controller Functions | — | — | — | On/Off / Flow Rate Adjustment / Feed / Wave Maker | On/Off / Flow Rate Adjustment / Feed / Wave Maker | On/Off / Flow Rate Adjustment / Feed / Wave Maker |
Physical
Common Specifications
- Shaft Material
- Ceramic
- Outlet Connection Type and Size
- φ40 With Male Threaded Connection
- Dimensions
- 182X96X110 mm
- Plug Type
- EU / CN / US / UK
Model Comparison
| Specification | HRD-7000 | HRD-8000 | HRD-9000 | HRD-7000A | HRD-8000A | HRD-9000A |
|---|---|---|---|---|---|---|
| Cable Length (m) | 3.5 | 3.5 | 3.5 | 2.7+1.9 | 2.7+1.9 | 2.7+1.9 |
General
Common Specifications
- Warranty Period
- 18 months
- Packaging Unit
- 8 PCS
- Carton Dimensions
- 48*35*30 cm
Model Comparison
| Specification | HRD-7000 | HRD-8000 | HRD-9000 | HRD-7000A | HRD-8000A | HRD-9000A |
|---|---|---|---|---|---|---|
| Gross Weight (Kg) | 2.3 | 2.3 | 2.3 | 2.6 | 2.6 | 2.6 |
| Gross Weight per Carton (kg) | 19 | 19 | 19 | 21.5 | 21.5 | 21.5 |
Applications
Home AquariumKoi & Ornamental Ponds
OEM & ODM Options
Housing Color Customization
Confirmed OEM customization option.
Packaging Customization
Confirmed OEM customization option.
New Appearance Development
Confirmed OEM customization option.
