Water Pumps
Representative ProductKOOI Honey Badger Series Variable-Frequency Water Pump
A variable-frequency circulation pump for freshwater and seawater, with seven models offering maximum flow rates of 15–30 m³/h, maximum lift heights of 5–13 m, and two adjustable-power options.
- MOQ
- 4 unit
- Available Models
- HRD-16SC, HRD-22SC, HRD-25SC, HRD-28SC, HRD-30SC, HRD-22SCA, HRD-30SCA
Overview
- The KOOI Honey Badger Series is a variable-frequency water pump range for freshwater and seawater circulation. Seven models cover maximum flow rates from 15 to 30 m³/h and maximum lift heights from 5 to 13 m. HRD-22SCA and HRD-30SCA offer adjustable power, allowing the pump output to be set for different circulation needs.
- The series combines a magnetic-suspension design with a variable-frequency motor for efficient operation, energy savings, and long service life. Lightning-surge, anti-interference, dry-run, and locked-rotor protection help safeguard operation. With a 5 m power cable, the pump can serve landscape water features, lawn sprinklers, hydroponic systems, seafood tanks, and aquaculture setups. Select a model by its listed power, maximum flow, and maximum lift.
Specifications
Electrical
Common Specifications
- Voltage
- 220V / 110V
Model Comparison
| Specification | HRD-16SC | HRD-22SC | HRD-25SC | HRD-28SC | HRD-30SC | HRD-22SCA | HRD-30SCA |
|---|---|---|---|---|---|---|---|
| Power Consumption (W) | 100 | 200 | 300 | 400 | 500 | 200 | 500 |
Performance
Common Specifications
- Variable-Frequency Drive (VFD)
- Yes
Model Comparison

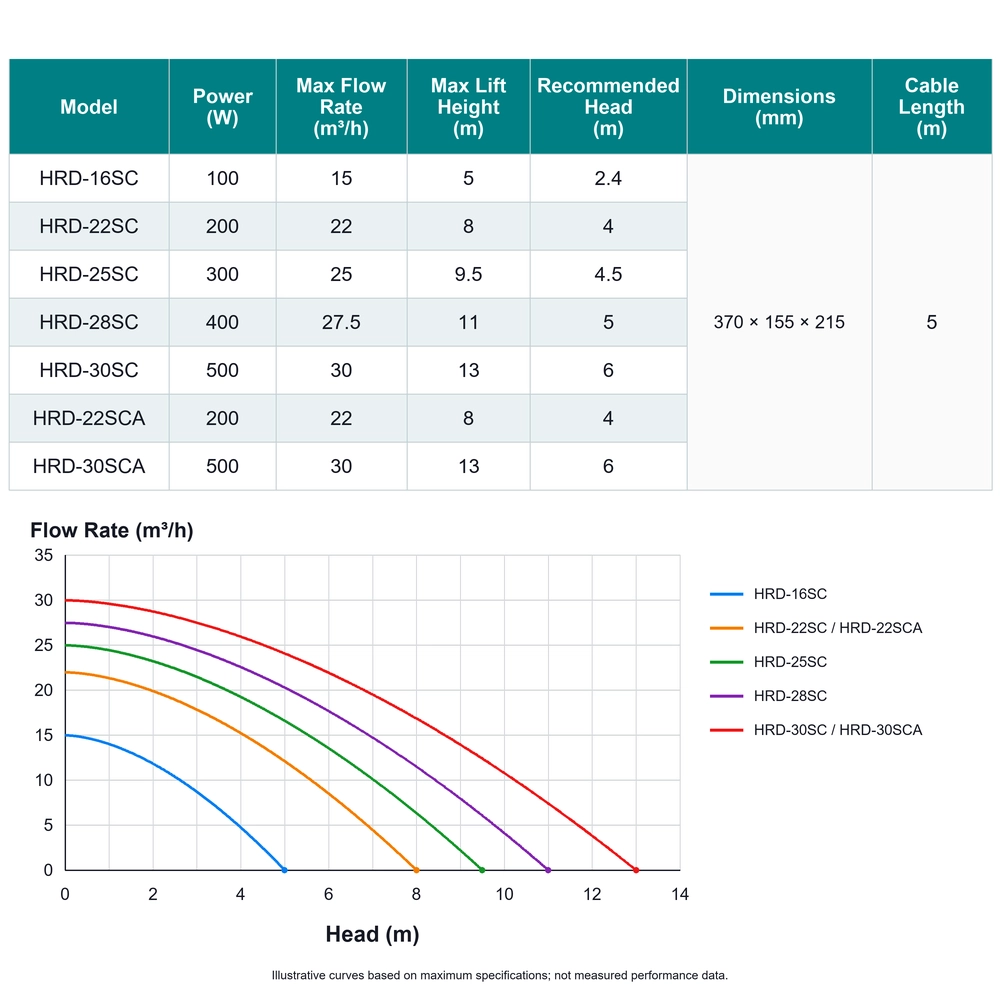

| Specification | HRD-16SC | HRD-22SC | HRD-25SC | HRD-28SC | HRD-30SC | HRD-22SCA | HRD-30SCA |
|---|---|---|---|---|---|---|---|
| Max Flow Rate | 15 | 22 | 25 | 27.5 | 30 | 22 | 30 |
| Max Lift Height (m) | 5 | 8 | 9.5 | 11 | 13 | 8 | 13 |
| Recommended Head (M) | 2.4 | 4 | 4.5 | 5 | 6 | 4 | 6 |
| Flow Rate Control | — | — | — | — | — | 10 levels | 10 levels |
| Controller Functions | — | — | — | — | — | Flow Rate Adjustment / On/Off | On/Off / Flow Rate Adjustment |
Physical
Common Specifications

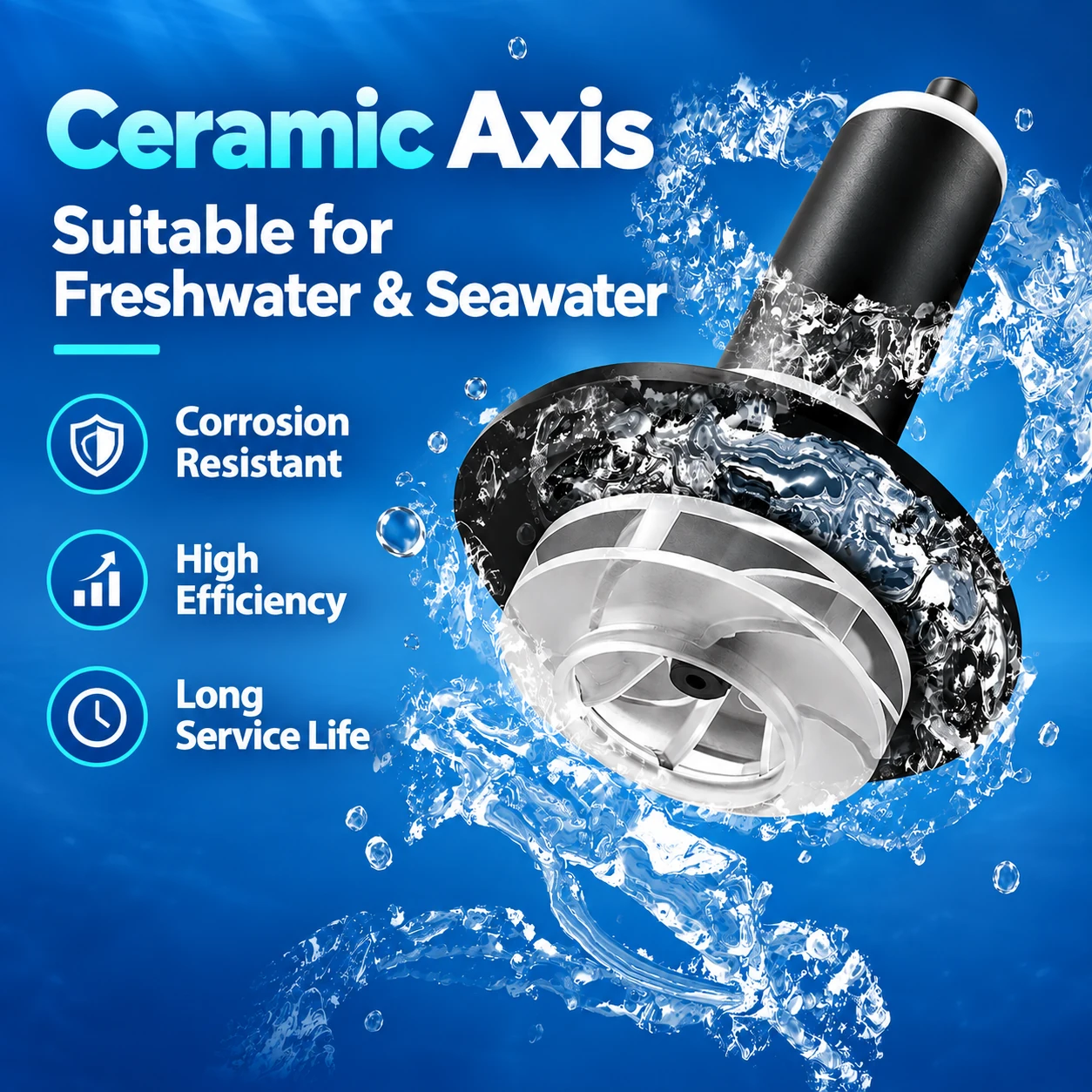

- Shaft Material
- Ceramic
- Outlet Connection Type and Size
- φ63With Male Threaded Connection
- Optional Accessories
- 63 mm PVC Female Threaded Adapter/Female Thread to 32 mm Hose Adapter/Female Thread to 40 mm Hose Adapter/Female Thread to 50 mm Hose Adapter
- Dimensions
- 370X155X215 mm
- Plug Type
- EU / CN / US / UK
Model Comparison
| Specification | HRD-16SC | HRD-22SC | HRD-25SC | HRD-28SC | HRD-30SC | HRD-22SCA | HRD-30SCA |
|---|---|---|---|---|---|---|---|
| Cable Length (m) | 5 | 5 | 5 | 5 | 5 | 3.5+1.3 | 3.5+1.3 |
General
Common Specifications
- Warranty Period
- 18 months
- Packaging Unit
- 4 PCS
- Carton Dimensions
- 54*43*40 cm
Model Comparison
| Specification | HRD-16SC | HRD-22SC | HRD-25SC | HRD-28SC | HRD-30SC | HRD-22SCA | HRD-30SCA |
|---|---|---|---|---|---|---|---|
| Gross Weight (Kg) | 4.8 | 4.8 | 5 | 5 | 5 | 4.3 | 5 |
| Gross Weight per Carton (kg) | 20.5 | 20.5 | 21 | 21 | 21 | 18.2 | 21.5 |
Applications
Koi & Ornamental PondsRecirculating Aquaculture
OEM & ODM Options
Housing Color Customization
Confirmed OEM customization option.
Packaging Customization
Confirmed OEM customization option.
New Appearance Development
Confirmed OEM customization option.
