Water Pumps
Representative ProductKOOI Big White Series Variable-Frequency Axial-Flow Water Pump
Submersible axial-flow pumps for high-volume, low-head freshwater and seawater circulation, with 100–500 W power, maximum flow rates of 45–120 m³/h and a 110 mm pipe connection.
- MOQ
- 4 unit
- Available Models
- HRD-45EC, HRD-7OEC, HRD-90EC, HRD-105EC, HRD-120EC, HRD-7OECAD, HRD-12OECAD
Overview

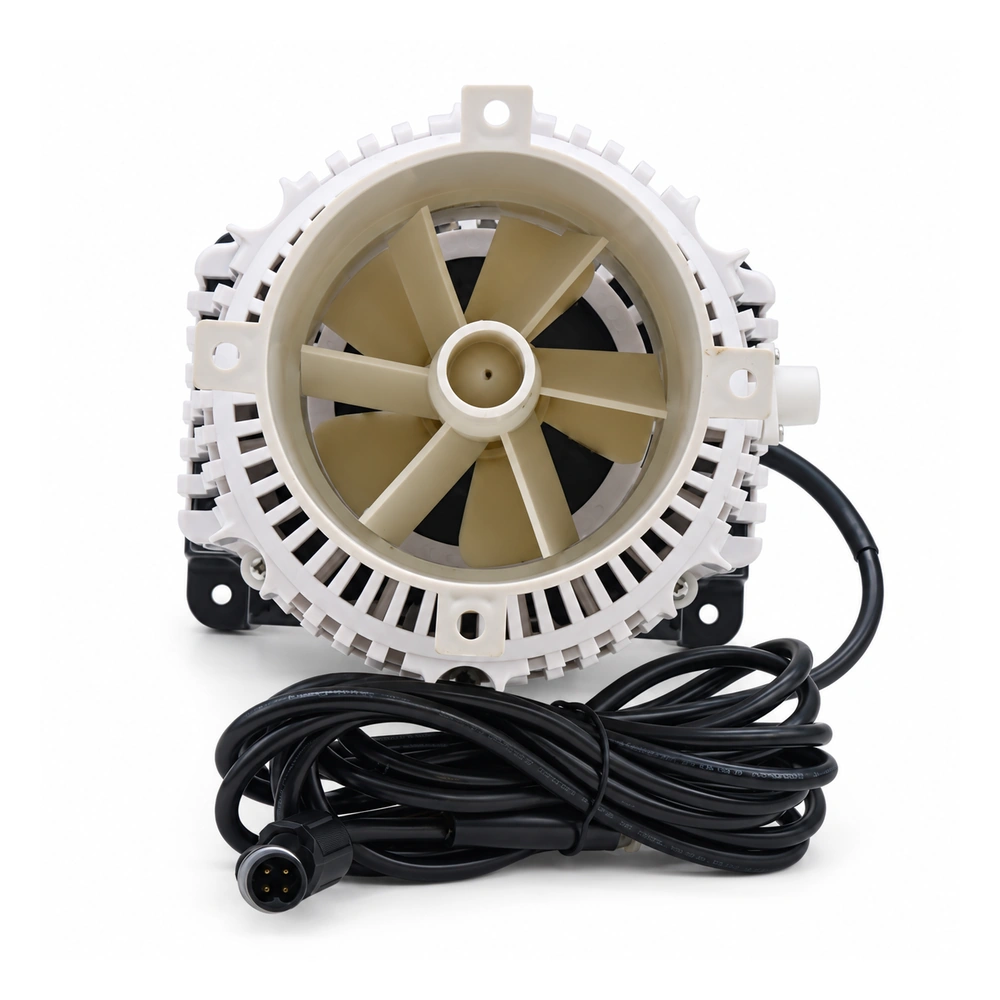

- KOOI Big White Series pumps use a submersible axial-flow design for high-volume circulation in systems with small elevation differences. The range includes seven models, with power ratings from 100 to 500 W, model-specific maximum flow rates from 45 to 120 m³/h and maximum heads from 0.55 to 1.8 m. Maximum flow and maximum head describe separate operating limits.
- The series supports freshwater and seawater applications and features a 110 mm pipe connection. Applications include koi ponds, aquaculture facilities, river-style circulation channels and circulation systems used for zooplankton harvesting. The specified dimensions are 215 × 180 × 350 mm, with a 5 m cable.
- Variable-frequency operation is paired with protection against lightning surges, electrical interference, dry running and locked-rotor conditions.
Specifications
Electrical
Common Specifications
- Voltage
- 110V / 220V

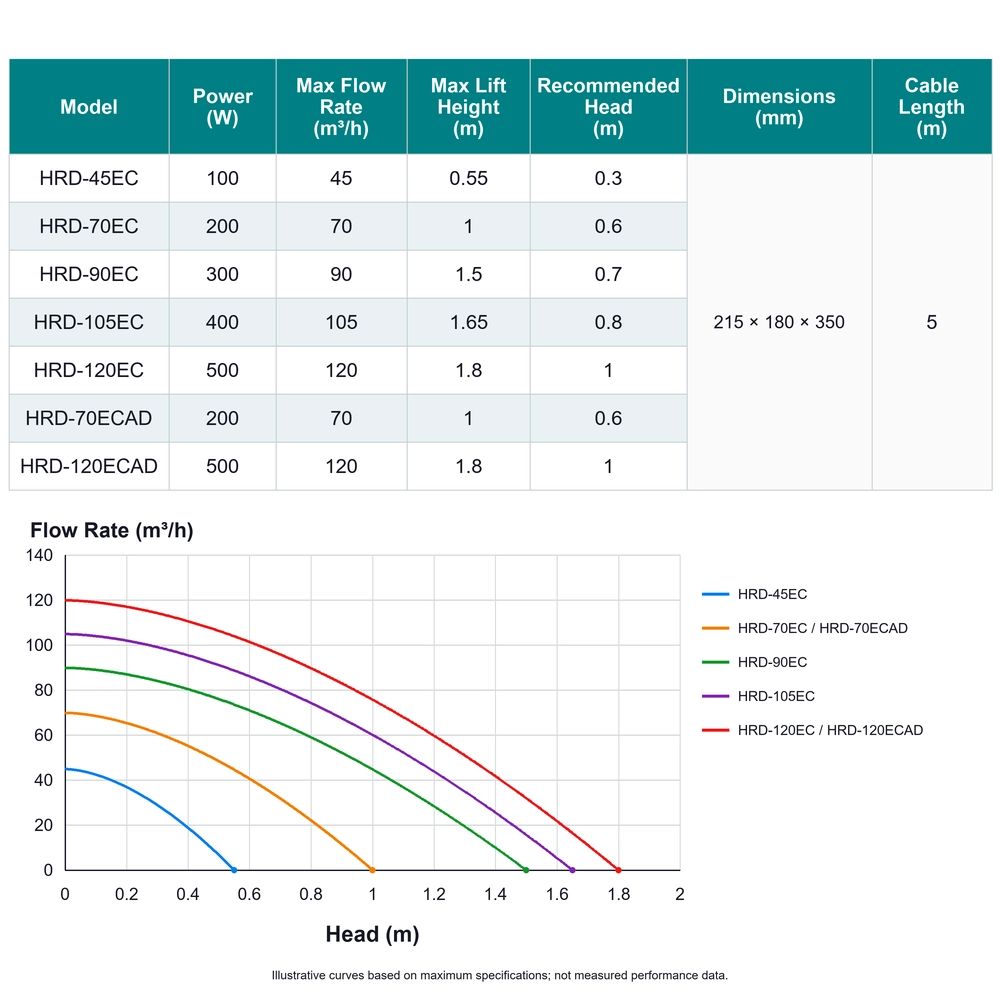

Model Comparison
| Specification | HRD-45EC | HRD-7OEC | HRD-90EC | HRD-105EC | HRD-120EC | HRD-7OECAD | HRD-12OECAD |
|---|---|---|---|---|---|---|---|
| Power Consumption (W) | 100 | 200 | 300 | 400 | 500 | 200 | 500 |
Performance
Common Specifications
- Variable-Frequency Drive (VFD)
- Yes
Model Comparison
| Specification | HRD-45EC | HRD-7OEC | HRD-90EC | HRD-105EC | HRD-120EC | HRD-7OECAD | HRD-12OECAD |
|---|---|---|---|---|---|---|---|
| Max Flow Rate | 45 | 70 | 90 | 105 | 120 | 70 | 120 |
| Max Lift Height (m) | 0.55 | 1 | 1.5 | 1.65 | 1.8 | 1 | 1.8 |
| Recommended Head (M) | 0.3 | 0.6 | 0.7 | 0.8 | 1 | 0.6 | 1 |
| Flow Rate Control | — | — | — | — | — | 10 levels | 10 levels |
| Controller Functions | — | — | — | — | — | On/Off / Flow Rate Adjustment | On/Off / Flow Rate Adjustment |
Physical
Common Specifications
- Shaft Material
- Ceramic
- Outlet Connection Type and Size
- φ110PVC
- Dimensions
- 215X180x350 mm
- Plug Type
- EU / CN / US / UK
Model Comparison
| Specification | HRD-45EC | HRD-7OEC | HRD-90EC | HRD-105EC | HRD-120EC | HRD-7OECAD | HRD-12OECAD |
|---|---|---|---|---|---|---|---|
| Cable Length (m) | 5 | 5 | 5 | 5 | 5 | 3.5+1.3 | 3.5+1.3 |
General
Common Specifications
- Warranty Period
- 18 months
- Packaging Unit
- 4 PCS
- Carton Dimensions
- 54*43*44 cm
Model Comparison
| Specification | HRD-45EC | HRD-7OEC | HRD-90EC | HRD-105EC | HRD-120EC | HRD-7OECAD | HRD-12OECAD |
|---|---|---|---|---|---|---|---|
| Gross Weight (Kg) | 4.9 | 4.9 | 5.2 | 5.2 | 5.2 | 4.7 | 5.6 |
| Gross Weight per Carton (kg) | 21 | 21 | 22 | 22 | 22 | 20.5 | 24 |
Applications
Koi & Ornamental PondsRecirculating Aquaculture
OEM & ODM Options
Housing Color Customization
Confirmed OEM customization option.
Packaging Customization
Confirmed OEM customization option.
New Appearance Development
Confirmed OEM customization option.
