Water Pumps
Representative ProductKOOI 63 Dual-Head Series Variable-Frequency Water Pump
Dual-head, dual-impeller water pumps for freshwater and seawater circulation, with 100–600 W power and model-specific maximum flow rates of 20–60 m³/h.
- MOQ
- 4 unit
- Available Models
- HRD-20DC, HRD-35DC, HRD-40DC, HRD-45DC, HRD-50DC, HRD-60DC, HRD-35DCA, HRD-5ODCA
Overview
- KOOI 63 Dual-Head Series pumps combine a dual-head, dual-impeller configuration with a magnetic suspension design for high-volume freshwater and seawater circulation. The range includes eight models, with power ratings from 100 to 600 W, model-specific maximum flow rates from 20 to 60 m³/h and maximum heads from 3.5 to 9 m. Maximum flow and maximum head describe separate operating limits.
- Applications include rockery waterfalls, fountains, water walls and large trickle filtration systems. The pump features two top threaded connections, intake covers at both ends, a central carrying handle and a mounting base. The specified dimensions are 410 × 155 × 215 mm, with a 5 m cable.
- Variable-frequency operation is paired with protection against lightning surges, electrical interference, dry running and locked-rotor conditions. Select the model according to the required operating head and circulation flow.
Specifications
Electrical
Common Specifications
- Voltage
- 110V / 220V / 380V

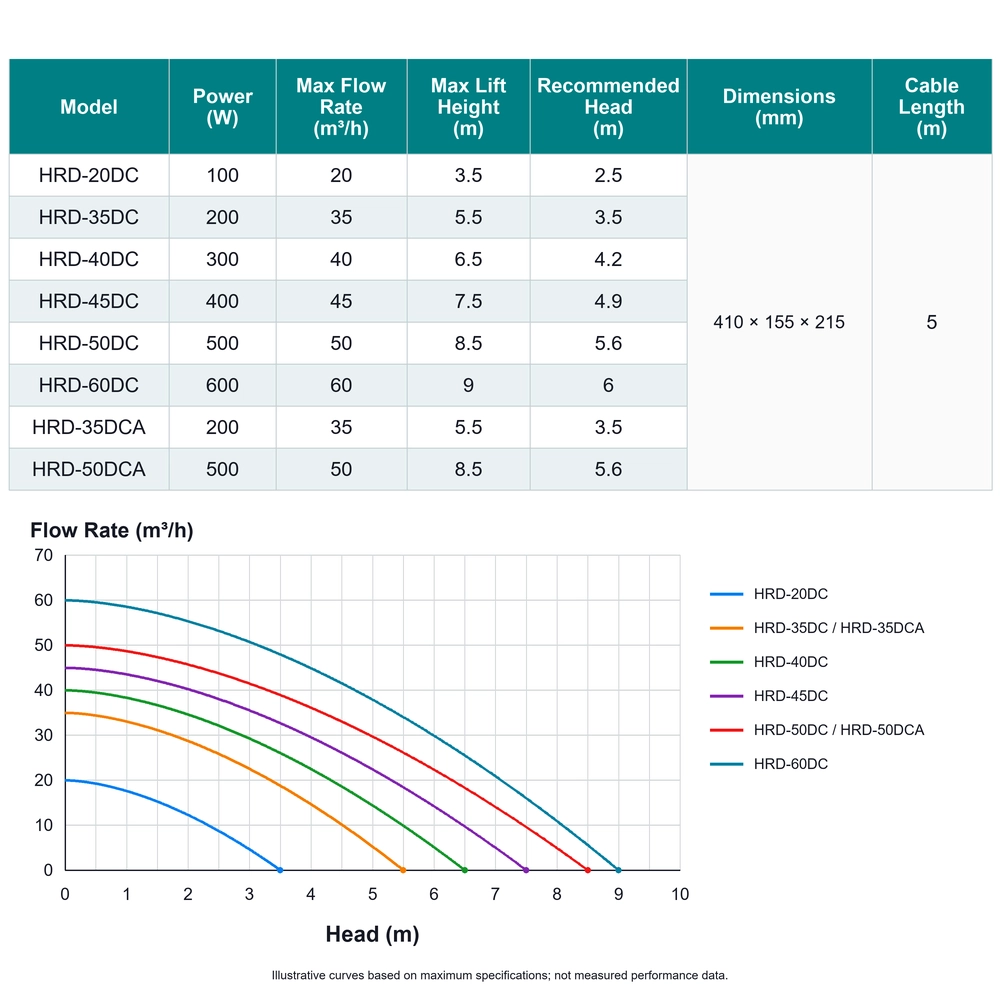

Model Comparison
| Specification | HRD-20DC | HRD-35DC | HRD-40DC | HRD-45DC | HRD-50DC | HRD-60DC | HRD-35DCA | HRD-5ODCA |
|---|---|---|---|---|---|---|---|---|
| Power Consumption (W) | 100 | 200 | 300 | 400 | 500 | 600 | 200 | 500 |
Performance
Common Specifications
- Variable-Frequency Drive (VFD)
- Yes
Model Comparison
| Specification | HRD-20DC | HRD-35DC | HRD-40DC | HRD-45DC | HRD-50DC | HRD-60DC | HRD-35DCA | HRD-5ODCA |
|---|---|---|---|---|---|---|---|---|
| Max Flow Rate | 20 | 35 | 40 | 45 | 50 | 60 | 35 | 50 |
| Max Lift Height (m) | 3.5 | 5.5 | 6.5 | 7.5 | 8.5 | 9 | 3.5 | 8.5 |
| Recommended Head (M) | 2.5 | 3.5 | 4.2 | 4.9 | 5.6 | 6 | 3.5 | 5.6 |
| Flow Rate Control | — | — | — | — | — | — | 10 levels | 10 levels |

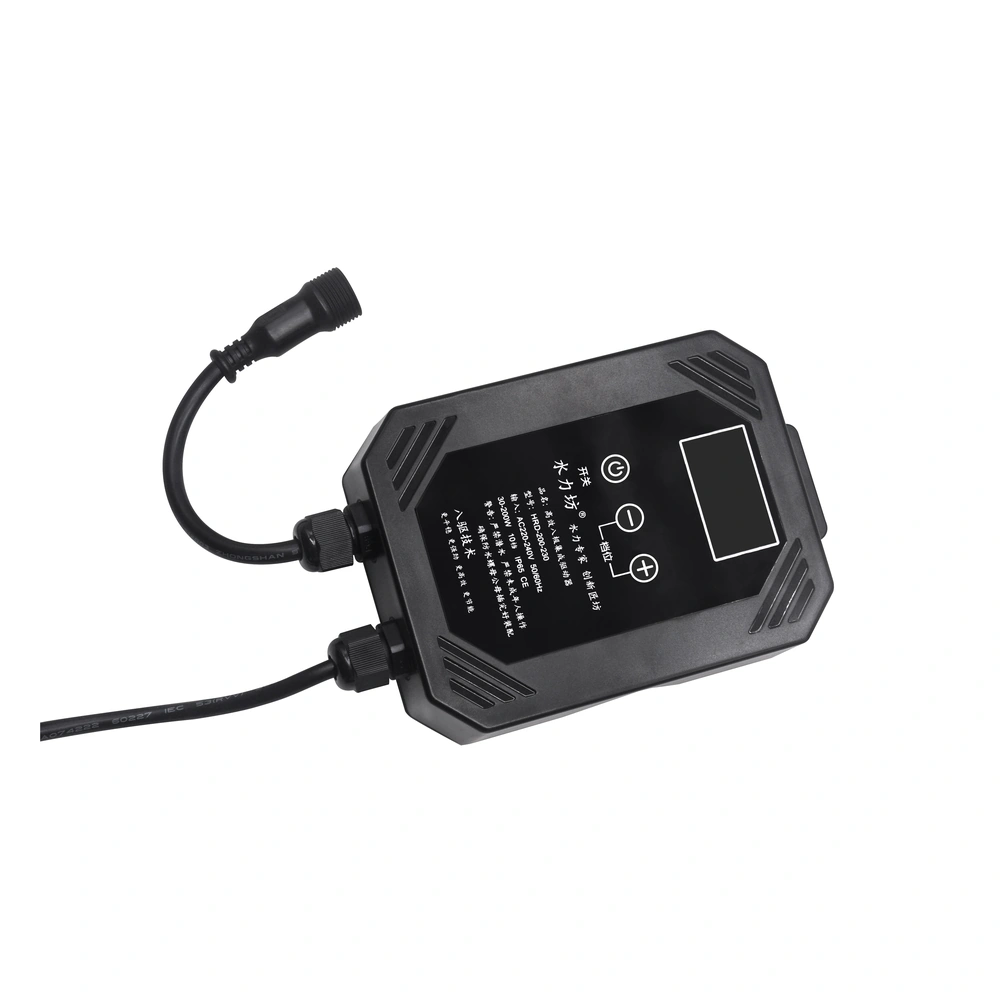

| Controller Functions | — | — | — | — | — | — | On/Off / Flow Rate Adjustment | On/Off / Flow Rate Adjustment |
Physical
Common Specifications

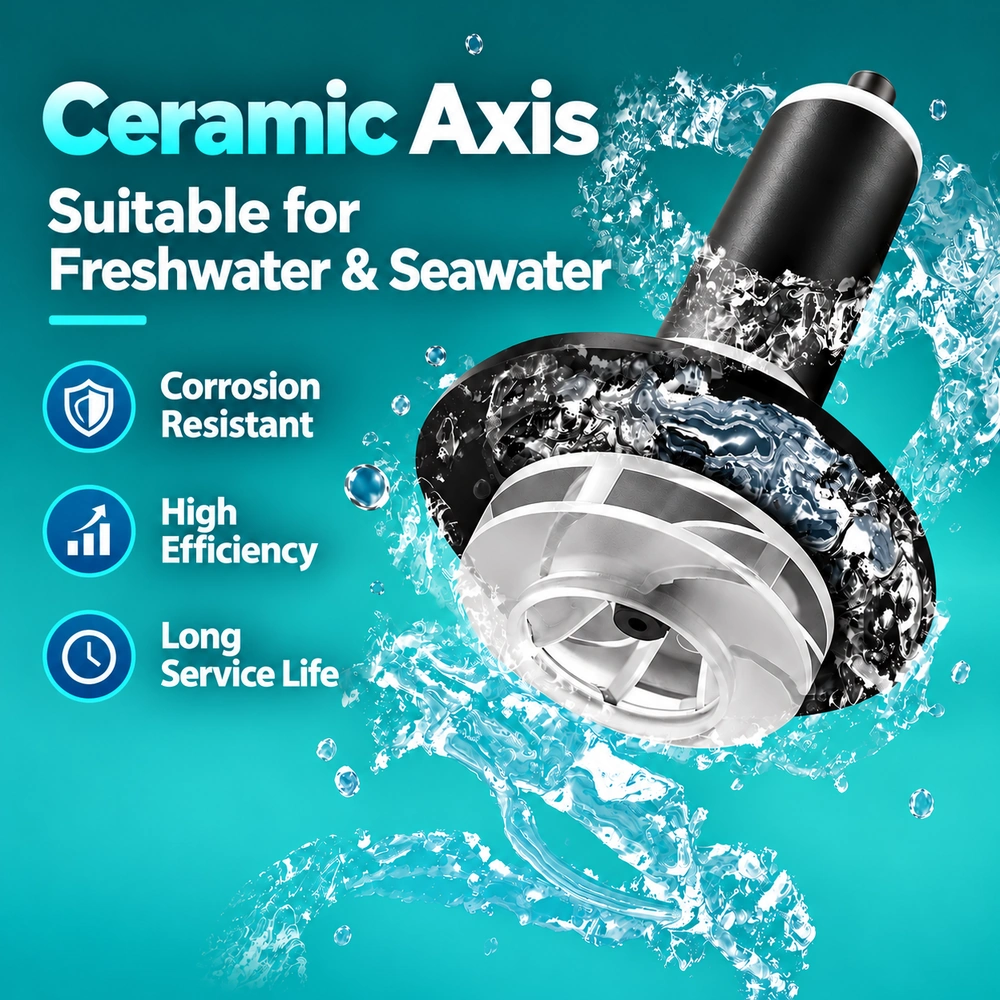

- Shaft Material
- Ceramic
- Outlet Connection Type and Size
- φ63 With Male Threaded Connection
- Inlet Connection Type and Size
- φ63 With Male Threaded Connection
- Optional Accessories
- 63 mm PVC Female Threaded Adapter/Female Thread to 32 mm Hose Adapter/Female Thread to 40 mm Hose Adapter/Female Thread to 50 mm Hose Adapter
- Dimensions
- 410X155X215 mm
- Plug Type
- EU / CN / US / UK
Model Comparison
| Specification | HRD-20DC | HRD-35DC | HRD-40DC | HRD-45DC | HRD-50DC | HRD-60DC | HRD-35DCA | HRD-5ODCA |
|---|---|---|---|---|---|---|---|---|
| Cable Length (m) | 5 | 5 | 5 | 5 | 5 | 5 | 3.5+1.3 | 3.5+1.3 |
General
Common Specifications
- Warranty Period
- 18 months
- Packaging Unit
- 4 PCS
- Carton Dimensions
- 54*43*44 cm
Model Comparison
| Specification | HRD-20DC | HRD-35DC | HRD-40DC | HRD-45DC | HRD-50DC | HRD-60DC | HRD-35DCA | HRD-5ODCA |
|---|---|---|---|---|---|---|---|---|
| Gross Weight (Kg) | 4.8 | 4.8 | 5.3 | 5.3 | 5.3 | 5.3 | 4.8 | 5.6 |
| Gross Weight per Carton (kg) | 20.5 | 20.5 | 23 | 23 | 23 | 23 | 20.6 | 24 |
