Tubing & Accessories
Representative ProductMetal Aquarium Air Gang Valve with Individual Controls 8mm to 4mm
Distribute one aquarium air supply to multiple air lines with a metal gang valve featuring individual lever controls, an inlet for 8 mm I.D. tubing and outlets for 4 mm I.D. tubing.
- MOQ
- 100 PCS
- Available Models
- TJF-8-2, TJF-8-4, TJF-8-6, TJF-8-8, TJF-8-10, TJF-8-12
Overview

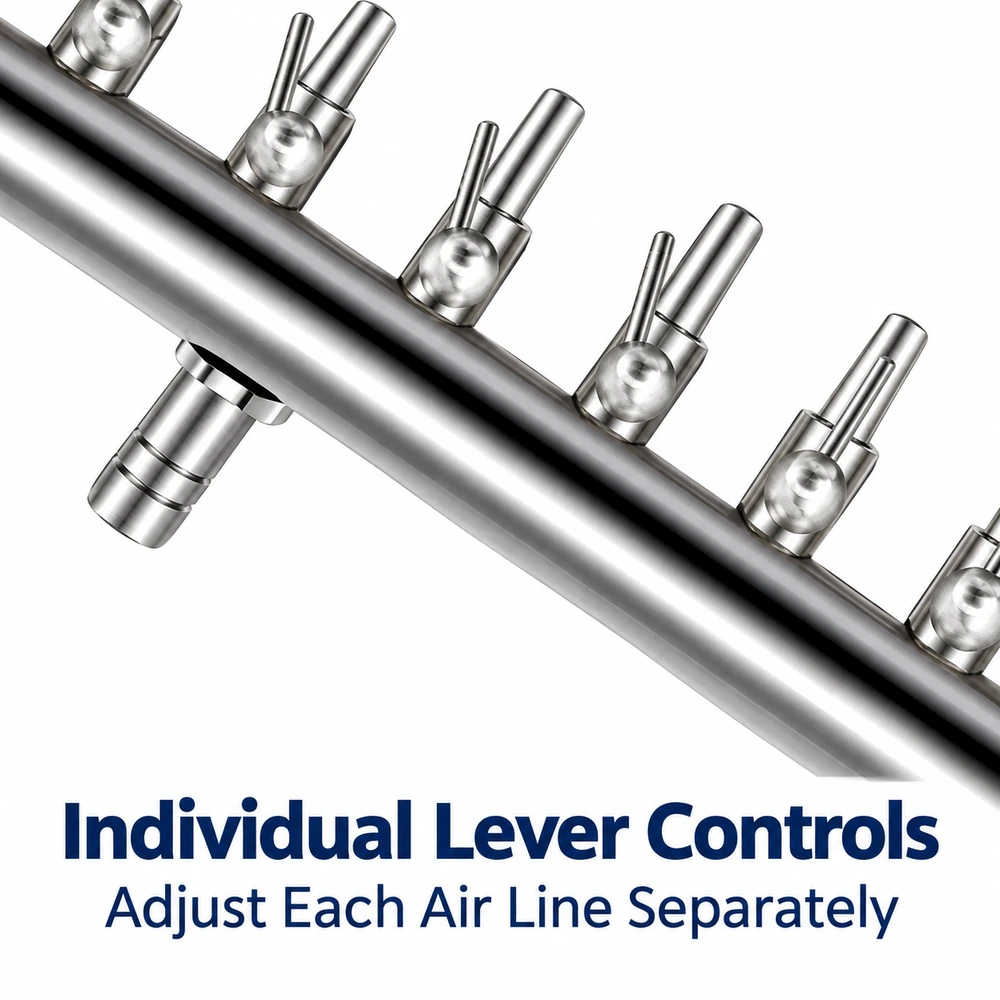

- This metal aquarium air gang valve distributes air from a single supply to several outlet lines. Each outlet has its own lever control, allowing the airflow to be adjusted or the individual line to be closed. It provides a central point for managing air delivery to multiple air stones, air-driven sponge filters or aquarium aeration points.

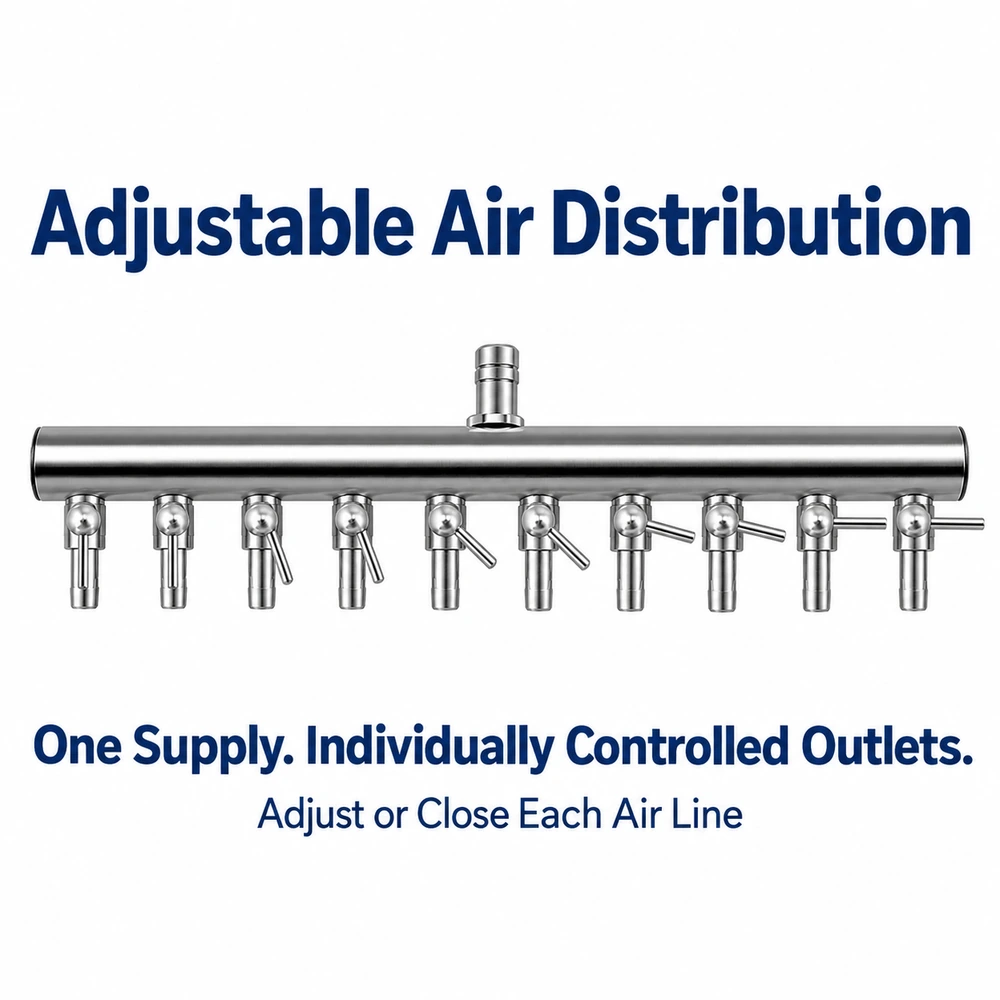

- The range includes 2-, 4-, 6-, 8-, 10- and 12-outlet configurations. The single-row layout keeps the controls accessible, while the larger central inlet supplies the smaller outlet connections. Select the outlet count to suit the number of air lines in the setup.

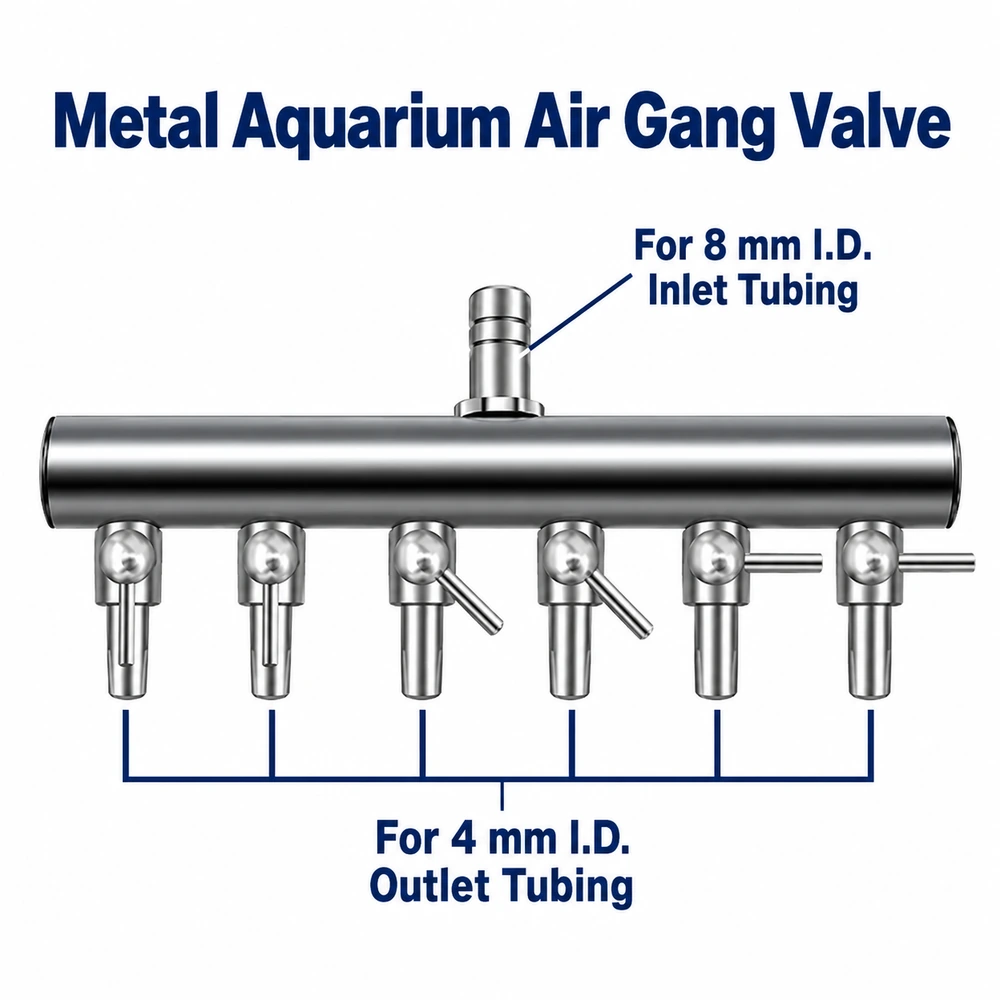

- The inlet is intended for tubing with an 8 mm internal diameter, and the outlets are intended for tubing with a 4 mm internal diameter. These values describe the intended tubing sizes, rather than independently measured connector outside diameters. Individual controls help balance air delivery between branches; actual airflow depends on the connected air pump, tubing and aeration devices.
- Suitable for fish tanks, seafood holding tanks, and aquaculture facilities, the series helps distribute air to air stones and other air-driven accessories.
Specifications
Physical
Common Specifications
- Material
- metal
- Number of Air Inlets
- 1
- Connection Size
- 4 mm
Model Comparison
| Specification | TJF-8-2 | TJF-8-4 | TJF-8-6 | TJF-8-8 | TJF-8-10 | TJF-8-12 |
|---|---|---|---|---|---|---|
| Outlets | 2 | 4 | 6 | 8 | 10 | 12 |
Applications
Home AquariumKoi & Ornamental PondsRecirculating Aquaculture
OEM & ODM Options
Packaging Customization
Confirmed OEM customization option.
