Representative ProductCorrosion-Resistant Inline Check Valve
Inline check valve for one-way flow, available in six size options: 3, 4, 6, 8, 10 and 12 mm.
- MOQ
- 500 PCS
- Available Models
- ZNF-30, ZNF-40, ZNF-60, ZNF-80, ZNF-100, ZNF-120
Overview

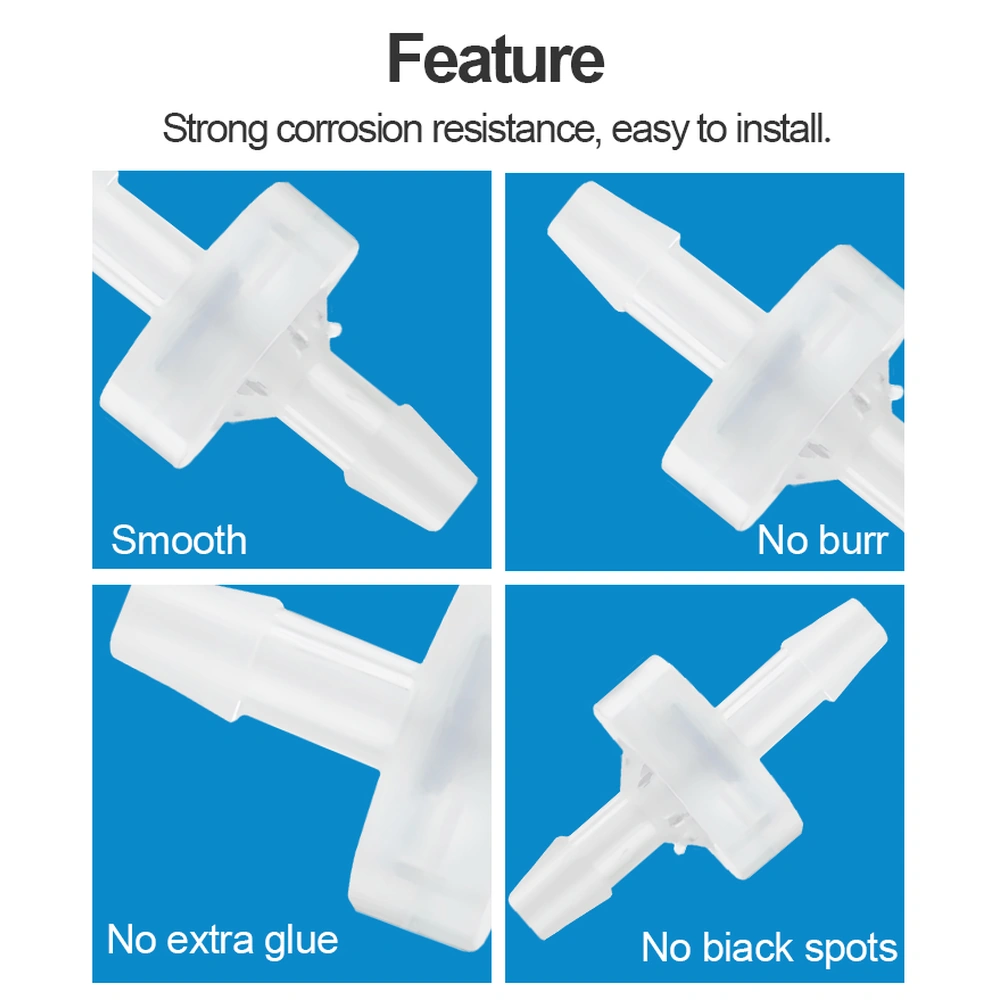

- This inline check valve allows flow in one direction and helps prevent backflow in tubing systems. The supplied product information highlights corrosion resistance, oil and ozone resistance, and easy installation.

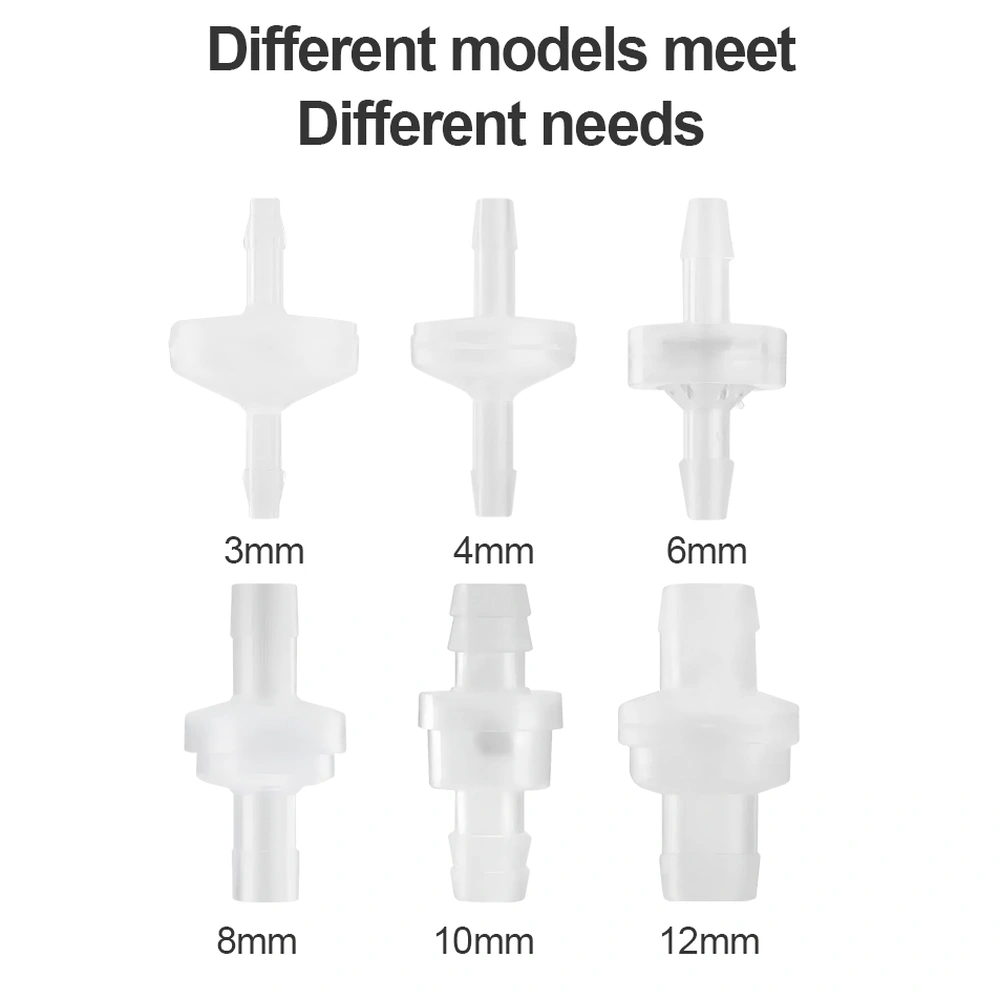

- The range includes six size options labeled 3, 4, 6, 8, 10 and 12 mm. Connection dimensions and valve body dimensions vary by option, allowing selection to suit different tubing layouts.
Specifications
Physical
Common Specifications
- Material
- PP
Model Comparison

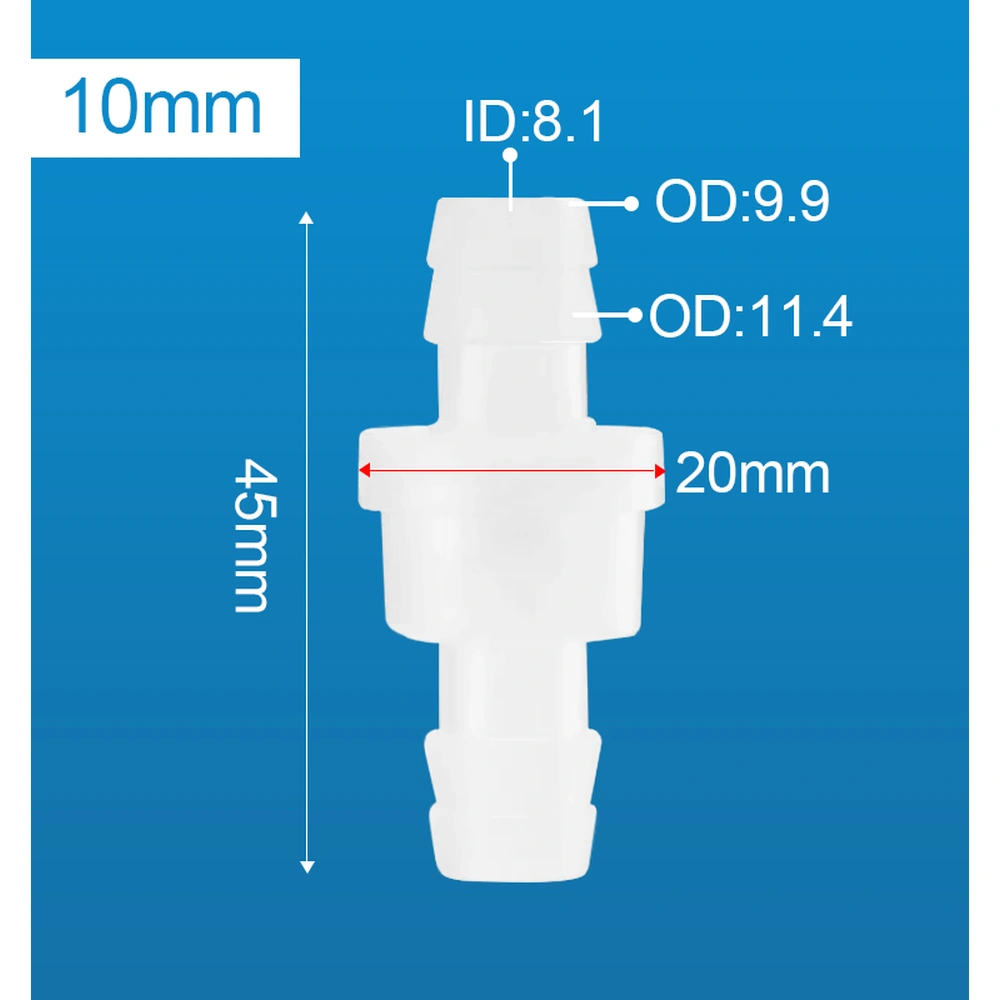

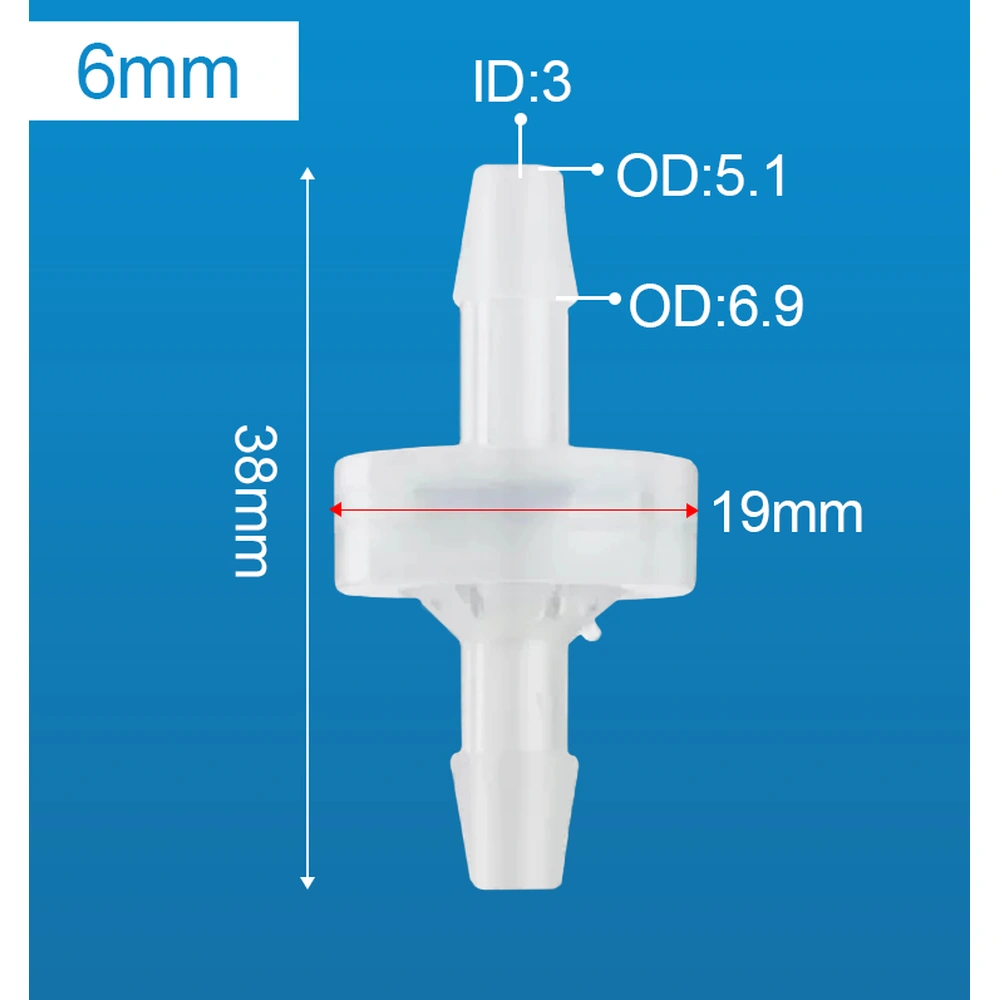

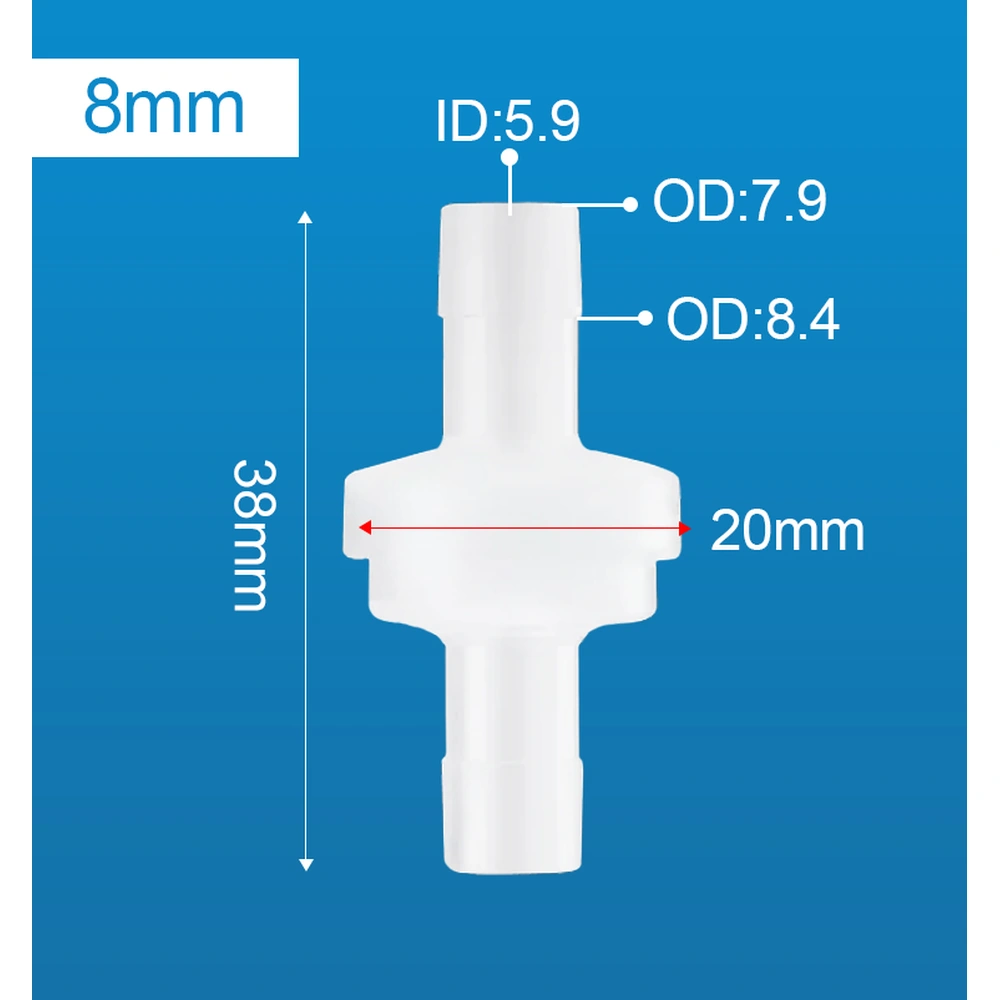

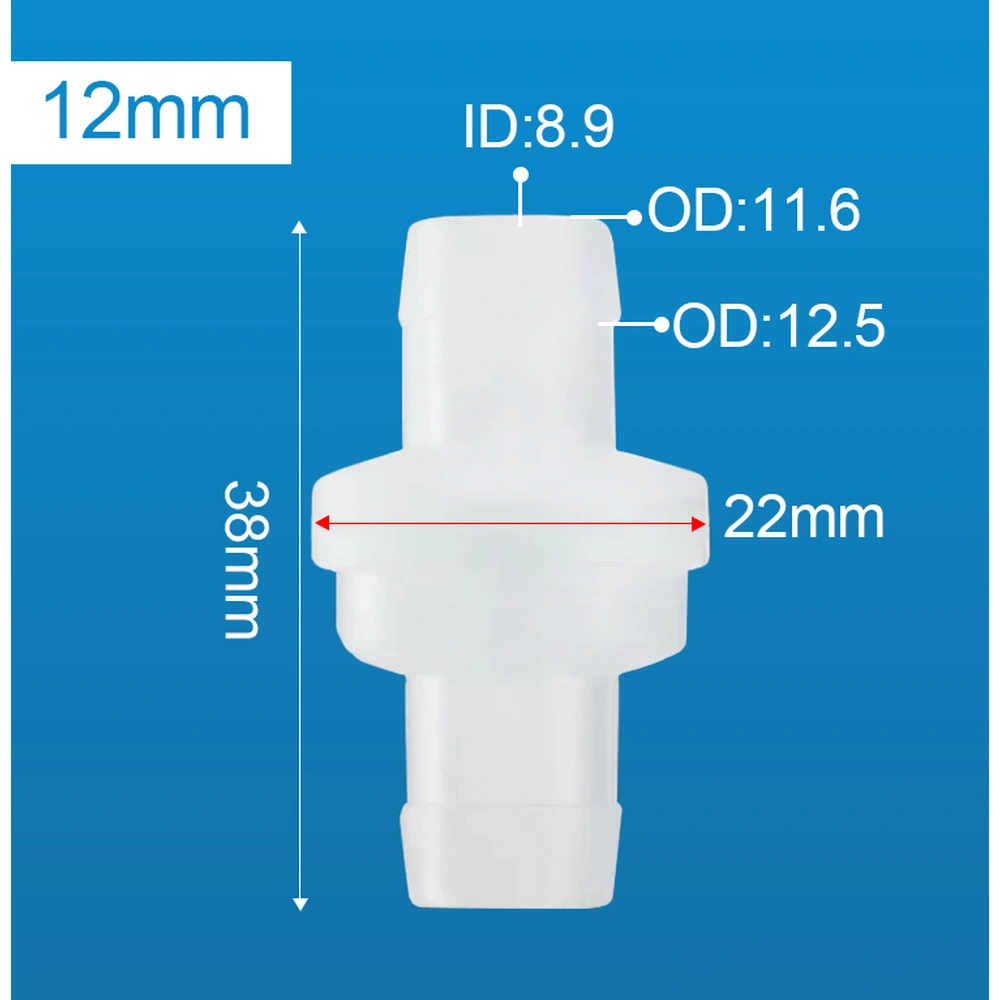

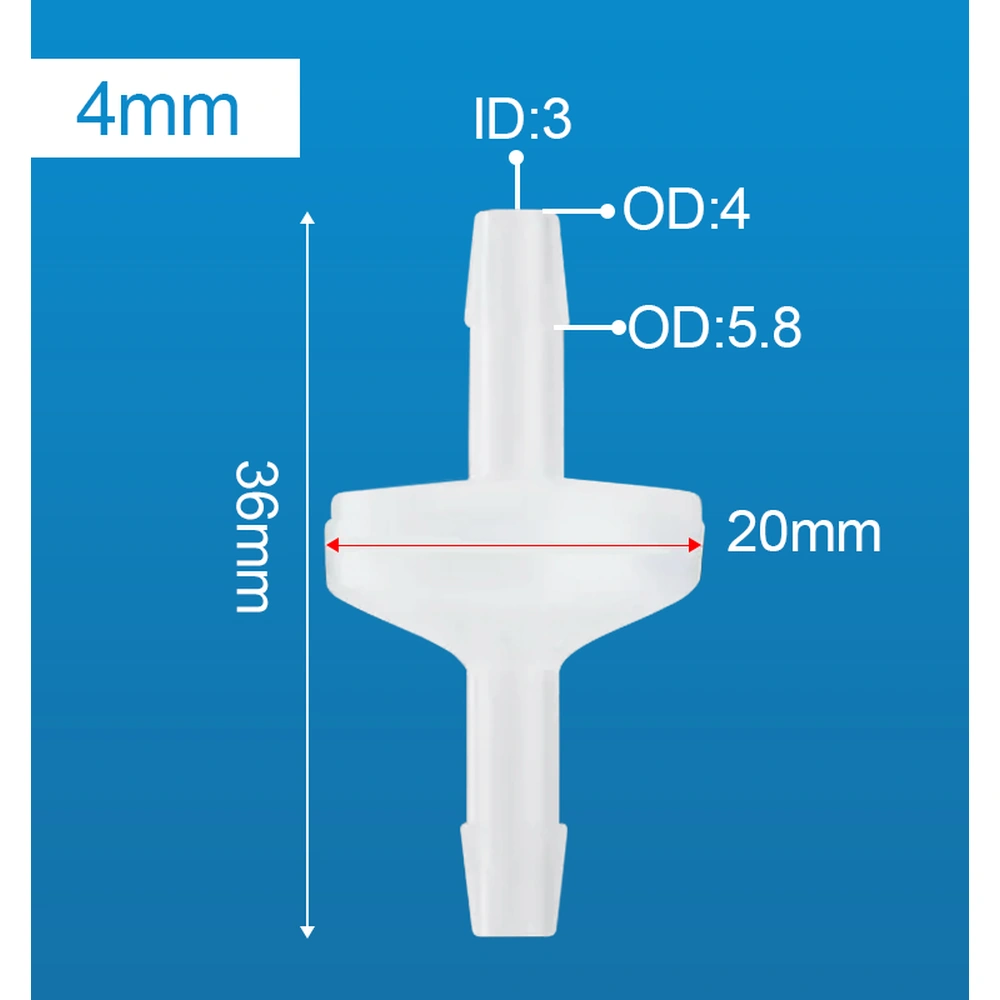

| Specification | ZNF-30 | ZNF-40 | ZNF-60 | ZNF-80 | ZNF-100 | ZNF-120 |
|---|---|---|---|---|---|---|

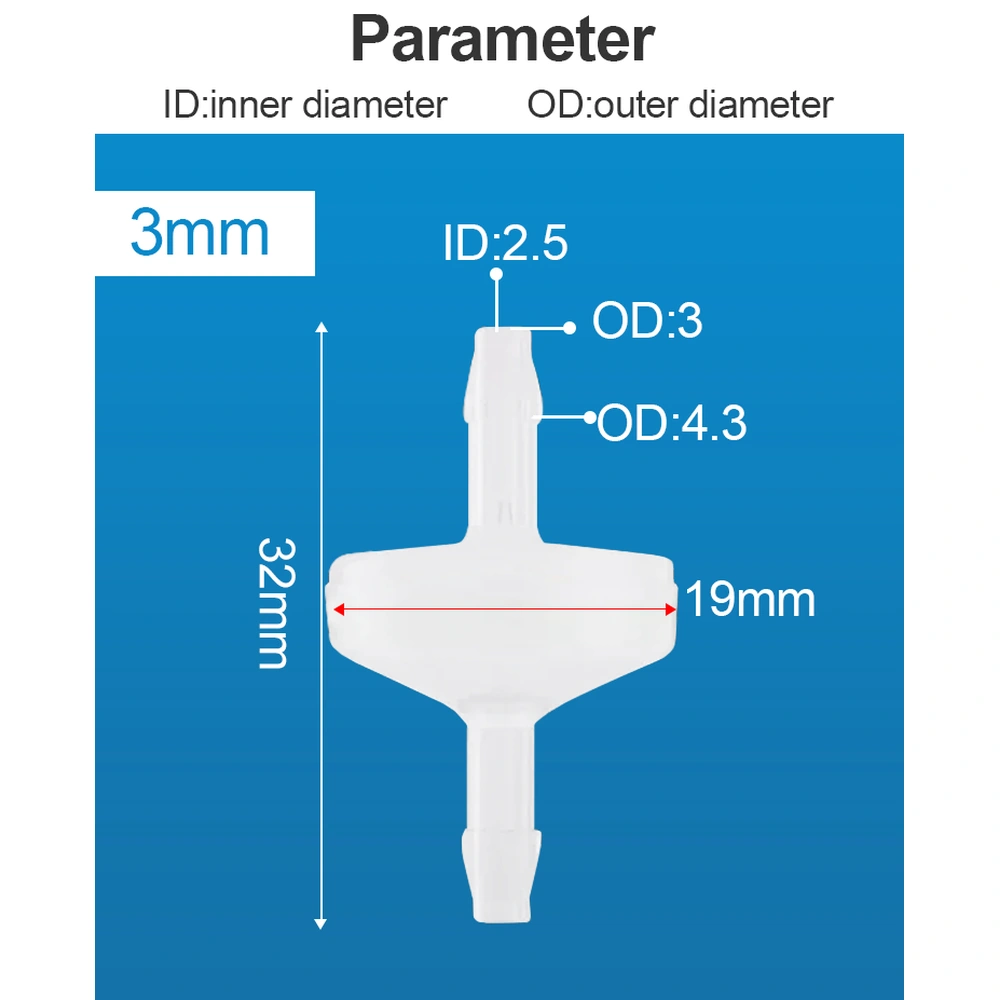

| Diameter (mm) | 19 | 20 | 19 | 20 | 20 | 22 |
| Length (mm) | 32 | 36 | 38 | 38 | 45 | 38 |
| Connection Size (mm) | 3 | 4 | 5 | 8 | 10 | 12 |
